Handrail & Stanchion Components

stainless steel handrail

Standard Handrail Stanchions


Manufactured to AS1657

Horizontal Stanchions

horizontal_stanchions
horizontal_stanchions_2
ALL STANCHIONS ALSO AVAILABLE DRILLED ONE SIDE ONLY (D.O.S.O.)

Angled Stanchions

angled_stanchions
angled_stanchions_2

One Ball Stanchions

oneball_stanchions

Multi-Ball Stanchions

handrailing_h7

Side Offset Stanchions

side_offset

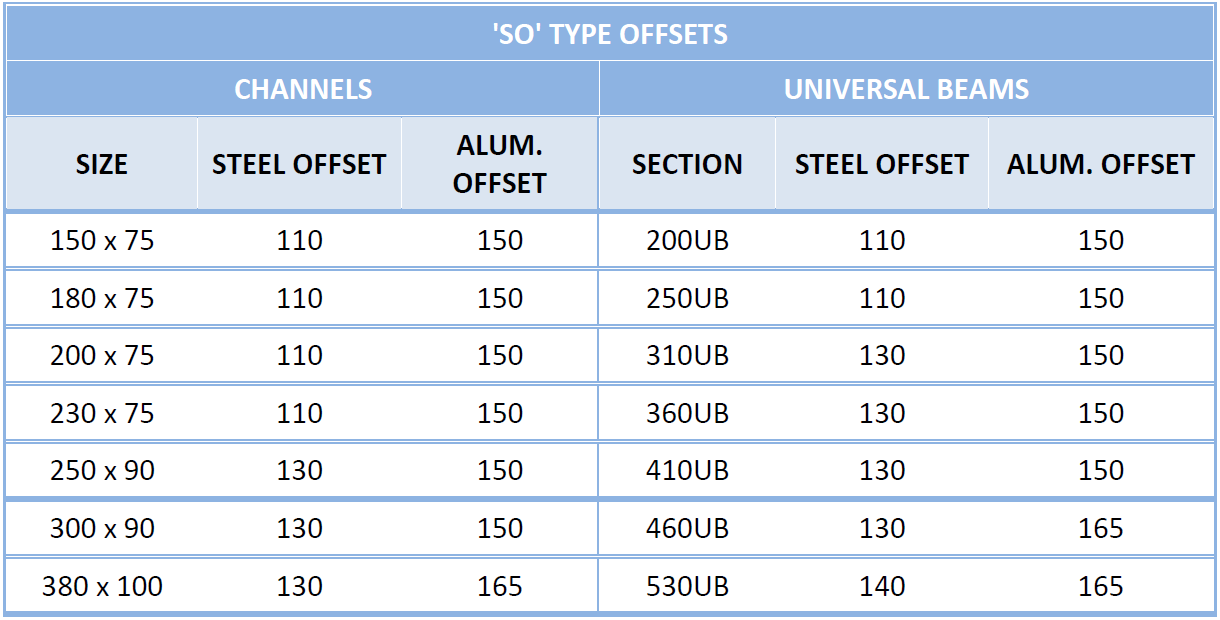

SO_type_Offsets

Horizontal Closure Bends


Standard Pipe:  32NB 3.2mm WT
Standard Radius: 140mm centre line

Available in other pipe sizes, talk to your sales consultant to discuss your requirements.
horizontal_closure_bends

Angle Closure Bends


Standard Pipe:  32NB 3.2mm WT
Internal Radius: 140mm centre line
Angles available: 1º to 45º

Available in other pipe sizes, talk to your sales consultant to discuss your project.
angle_closure_bends

Rail Bends


 Standard Pipe:
 Handrail 32NB 3.2mm WT
   Kneerail 25NB 3.2mm WT

 Angle α :
90º to 180º

 Internal Radius
140mm centre line

 Standard Leg:
300mm x 300mm

 Non-Standard Leg:
L1 + L2 = <6500
 eg
L1 = 1000, L2 < 5500








Slip Joints


rail_bends
Slip_joints_diagram
Slip_joints
Slip joints are used when joining the top or kneerail to another piece of pipe;
  • when an expansion joint is required, or
  • when joining rails without using a butt weld

The slip joint can be fixed by welding, or by using pins.
